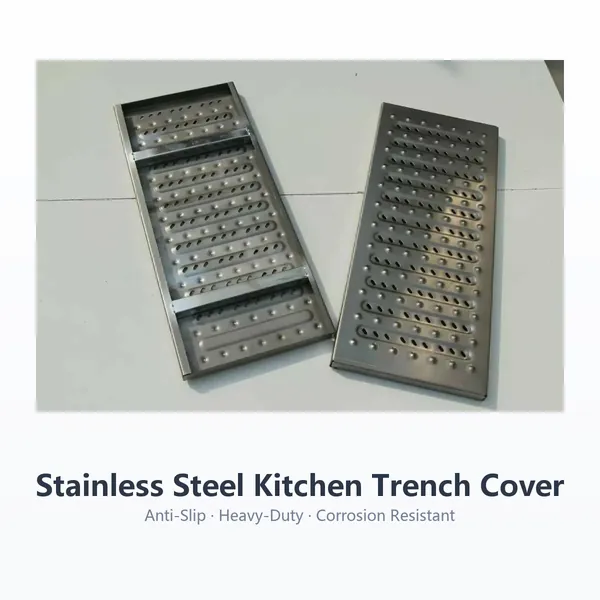

Stainless Steel Trench Drain Grates for Commercial Kitchens
Heavy-duty drain grates engineered for commercial kitchens, restaurants, and food-processing floors.
A stainless steel trench drain grate is a heavy-duty grate that sits over floor trenches to channel water, block debris, and keep commercial kitchen floors safe and hygienic.
Why Choose Full Kitchen Trench Drain Grates
Five practical advantages for busy commercial kitchens.
Anti-Slip Surface

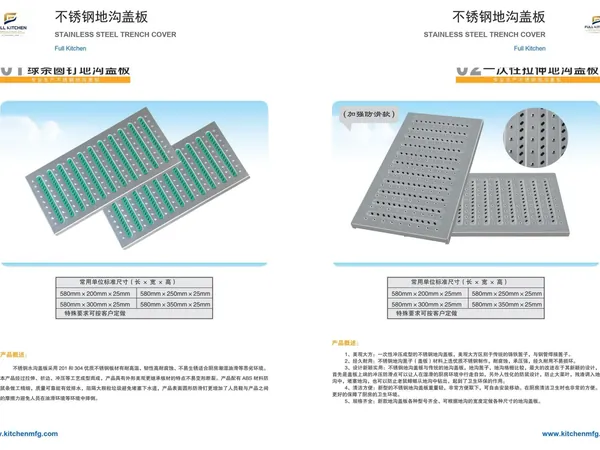

Raised studs, round holes, and stretched patterns provide grip under wet, oily kitchen conditions.
201 or 304 Stainless Steel
Choose the grade that fits your budget and corrosion-resistance needs for long service life. 304 conforms to ASTM A240 / EN 1.4301; 201 conforms to GB/T 3280.
Custom Sizes & Patterns
Standard 580 mm lengths in four widths, plus custom dimensions, shapes, and hole patterns on request.
Easy to Remove & Clean
Lift-out design lets staff rinse grease and debris quickly, supporting daily HACCP hygiene routines.
Factory-Direct OEM
Full Kitchen Utensils Co., Ltd. handles bending, stretching, and finishing in-house for competitive lead times.
Standard Specifications
Four ready sizes plus full customization. All dimensions in millimeters.
| Model | Material | Dimensions (L×W×H) | Plate Thickness | Load Rating | Surface Pattern | Finish | Unit Weight | Typical Use |
|---|---|---|---|---|---|---|---|---|
| FKC-TC-200 | 201 / 304 SS | 580 × 200 × 25 mm | 1.5 / 2.0 mm | Pedestrian · Hand cart · Light trolley (pass) | Anti-slip stud / Round hole | Brushed / Polished / Anti-slip embossed | ≈ 3.0 kg | Restaurant kitchens |
| FKC-TC-250 | 201 / 304 SS | 580 × 250 × 25 mm | 1.5 / 2.0 mm | Pedestrian · Hand cart · Light trolley (pass) | Single stretch / Round hole | Brushed / Polished / Anti-slip embossed | ≈ 3.5 kg | Hotel kitchens |

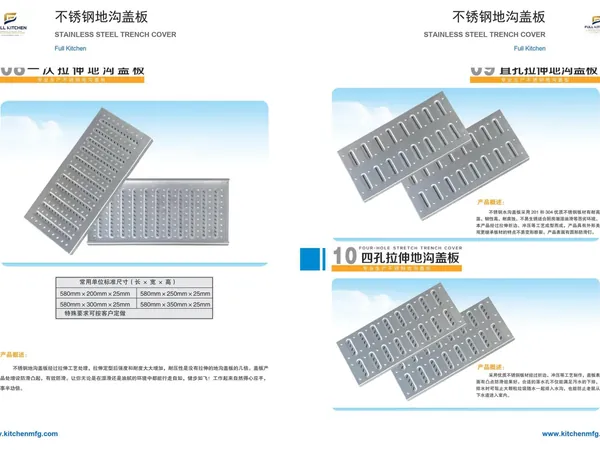

| FKC-TC-300 | 201 / 304 SS | 580 × 300 × 25 mm | 1.5 / 2.0 mm | Pedestrian · Hand cart · Light trolley (pass) | Multi-point stretch | Brushed / Polished / Anti-slip embossed | ≈ 4.0 kg | Food factories |
| FKC-TC-350 | 201 / 304 SS | 580 × 350 × 25 mm | 1.5 / 2.0 mm | Pedestrian · Hand cart · Light trolley (pass) | Four-hole stretch / Groove | Brushed / Polished / Anti-slip embossed | ≈ 4.5 kg | Supermarkets / Cold storage |
| FKC-TC-CUSTOM | 201 / 304 SS | Per drawing | 1.5 / 2.0 mm | Pedestrian · Hand cart · Light trolley (pass) | Custom | Per request | By size | Car washes / Pools / Special layouts |
Key Technical Parameters

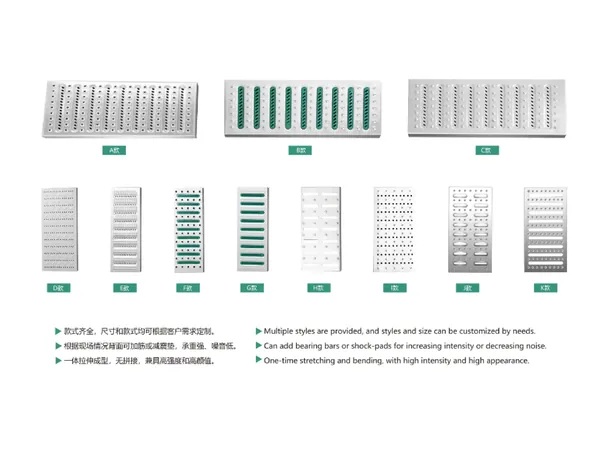

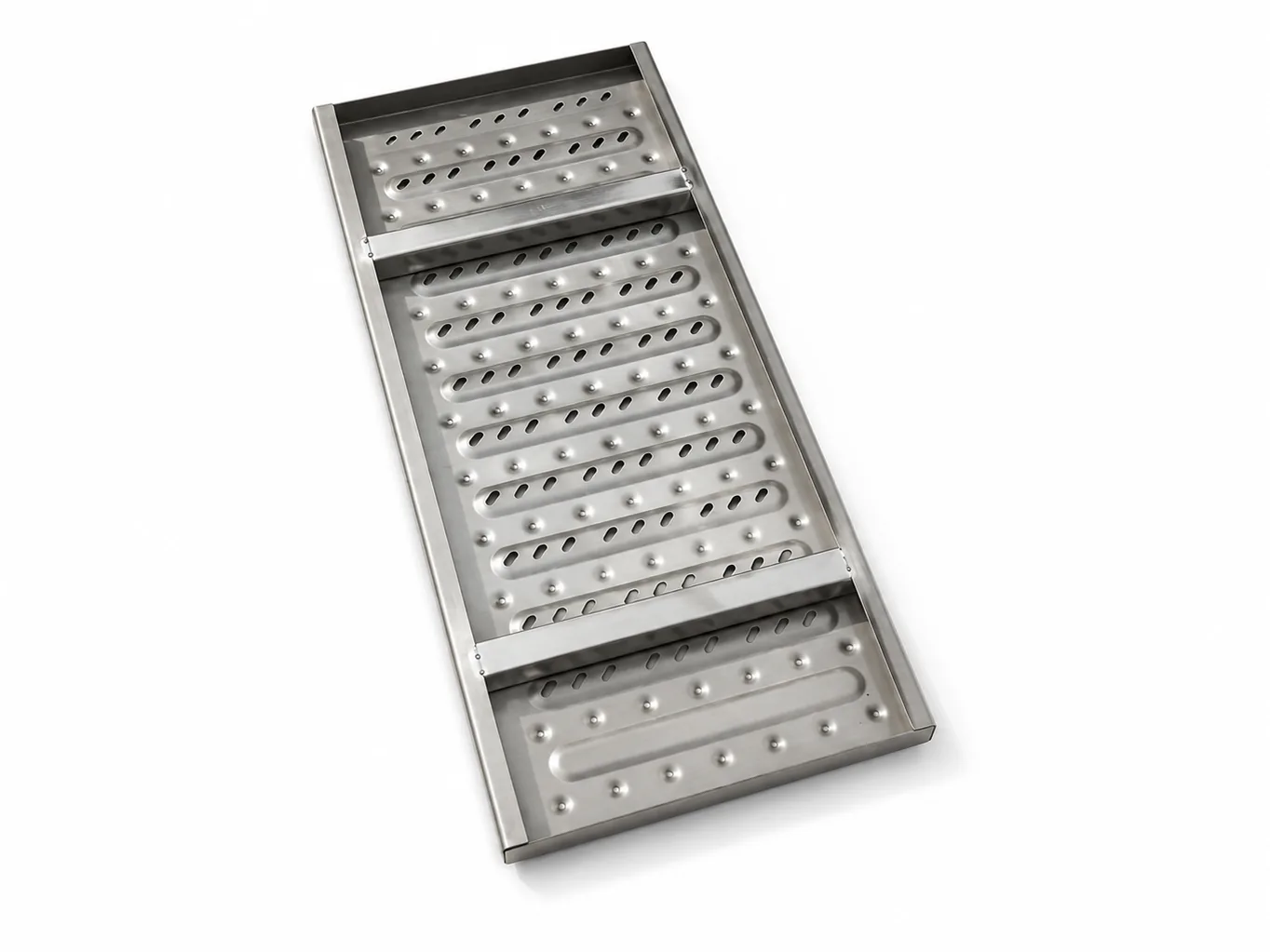

Product Details
Patterns and construction options for every drainage project.

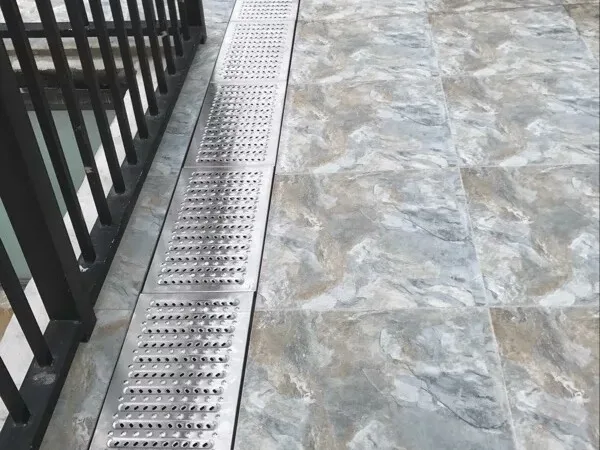

Outdoor Drainage
For outdoor wash-downs and weather exposure we recommend 304 stainless; 201 suits dry, low-corrosion indoor areas.
Indoor Walkways
Flush splicing across multiple units keeps corridors level and safe for carts and foot traffic.

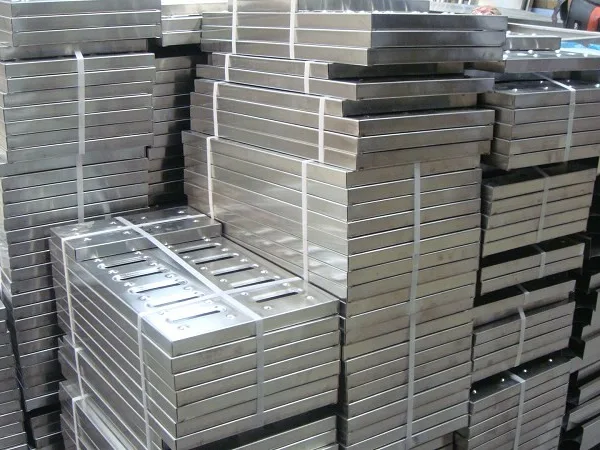

Bulk Production Ready
Consistent sizing and finish across stacked units shows factory-level quality control.
Anti-Slip Wet Areas
Raised studs plus elongated drainage slots keep floors safe under water, oil, and heavy cart traffic.

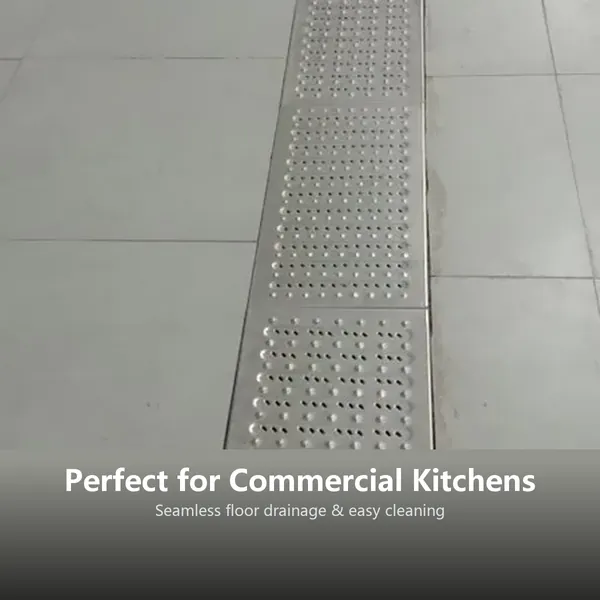

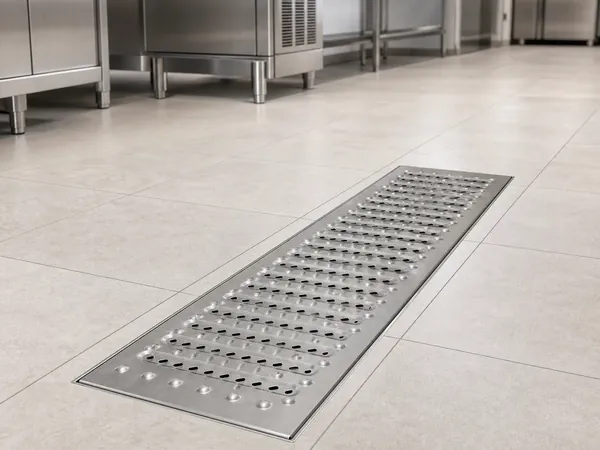

Commercial Kitchen Fit
Low-profile grates blend into tiled floors while providing continuous drainage under prep and wash areas.

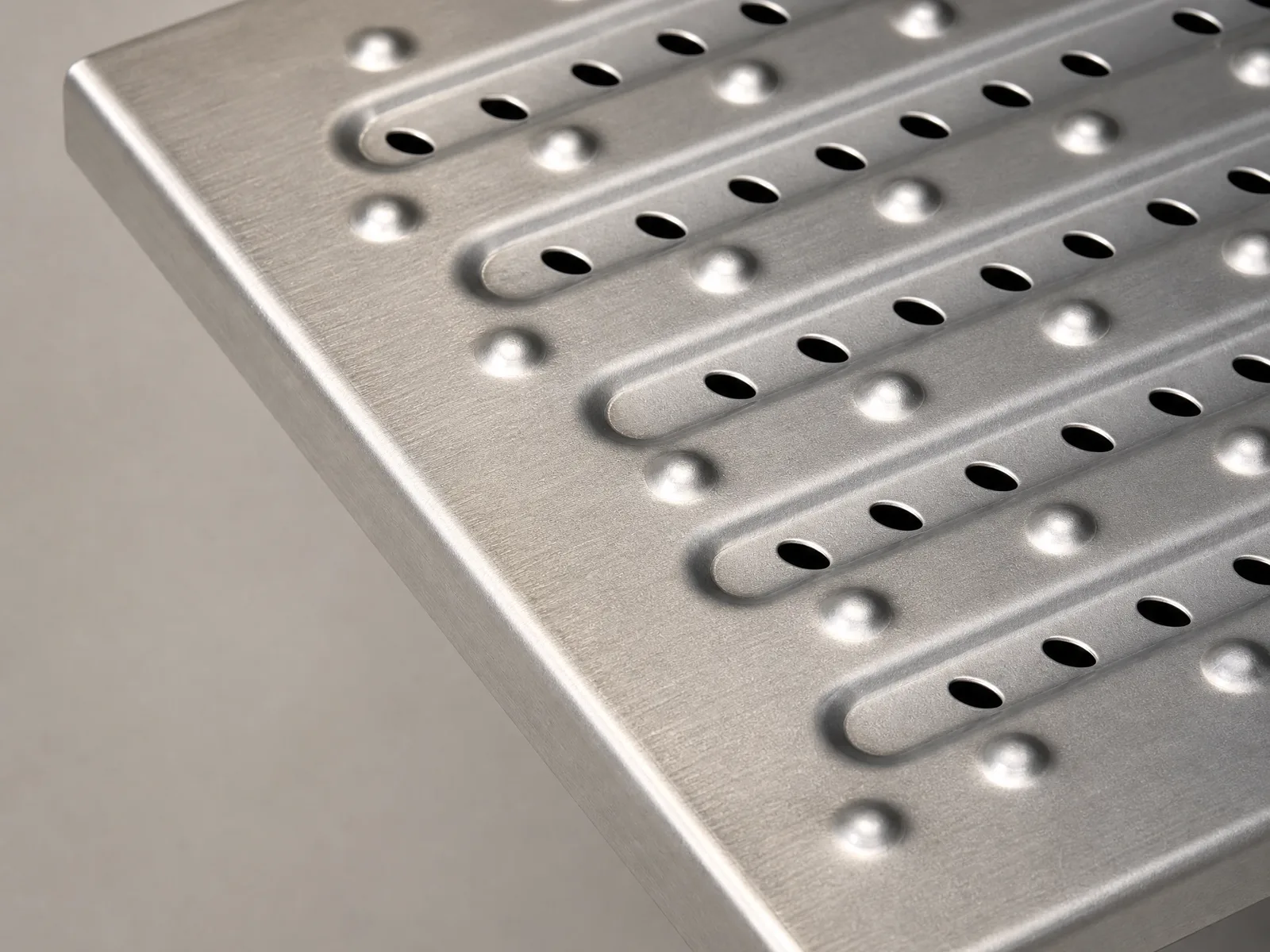

Anti-Slip Texture
Raised studs and precision-punched openings create grip without blocking water flow.

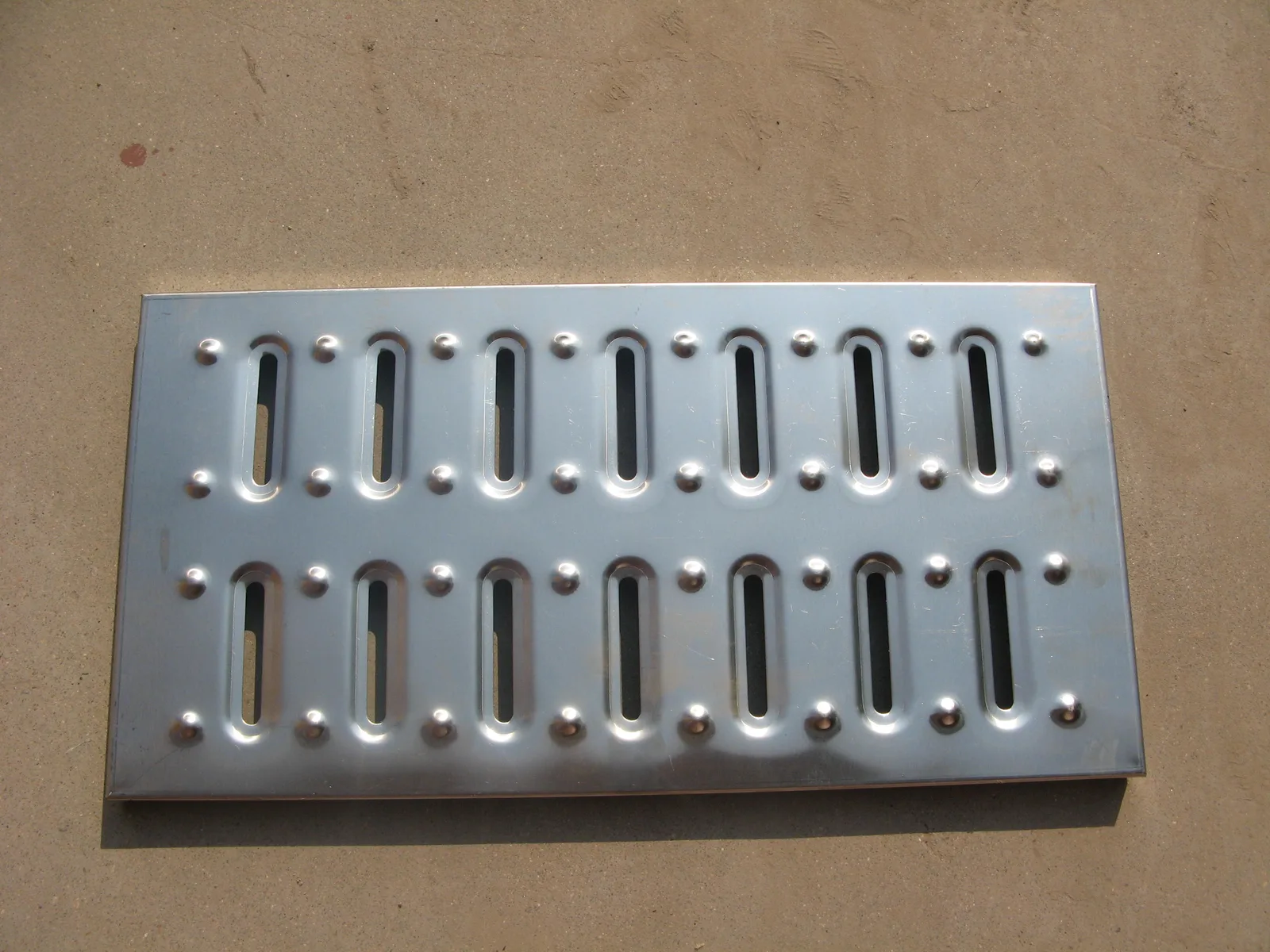

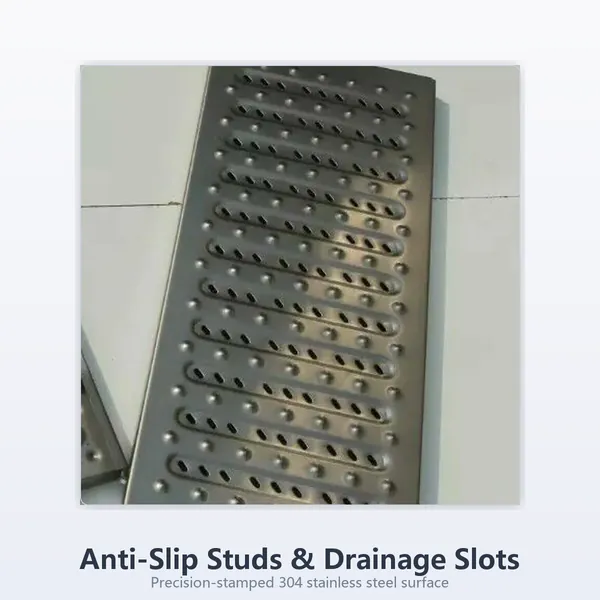

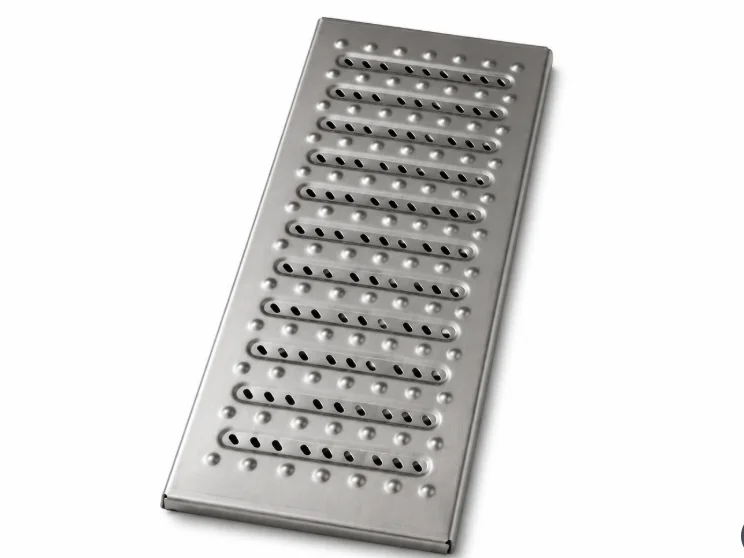

Slots + Stud Pattern
Elongated slots drain fast; surrounding studs add traction for kitchen staff.

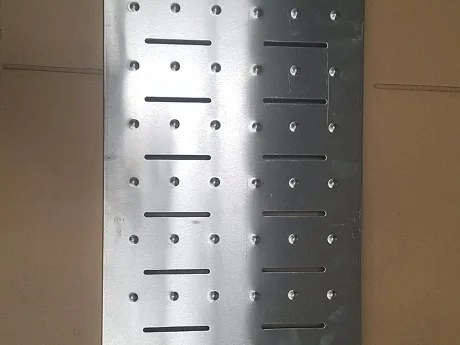

Holes & Slots Combination
Mixed opening styles balance debris blocking and drainage speed for different kitchen zones.

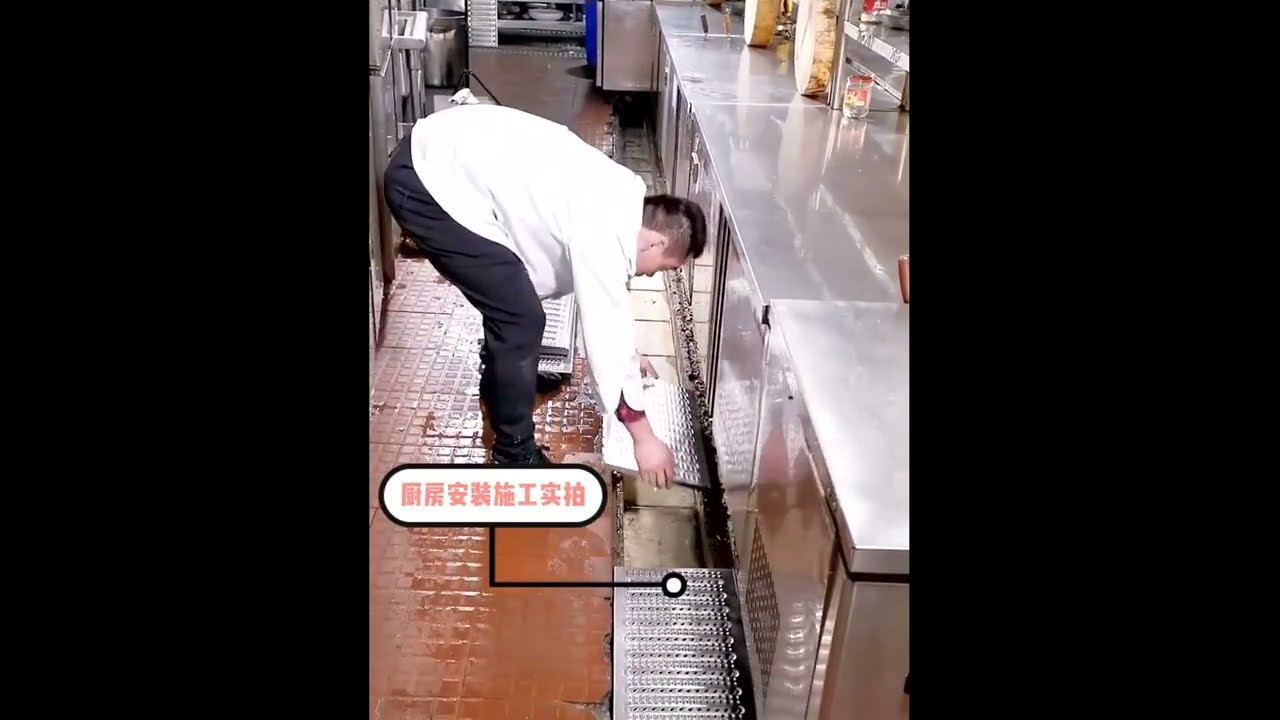

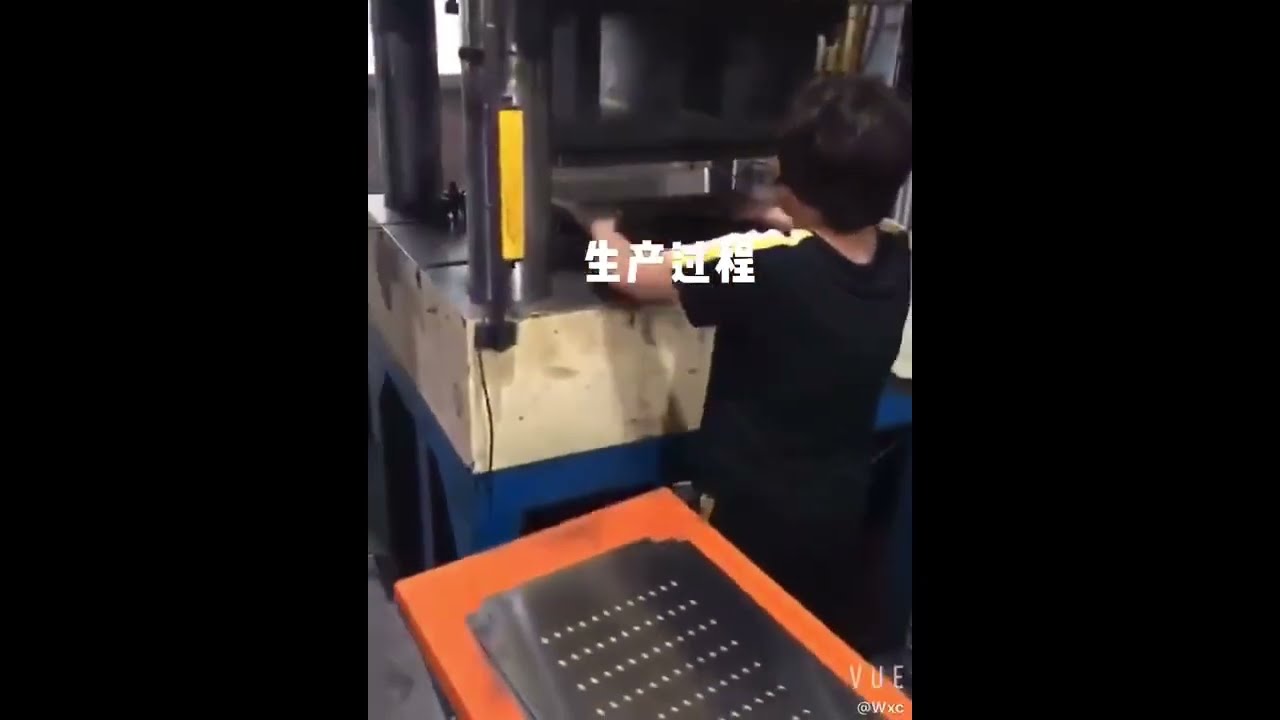

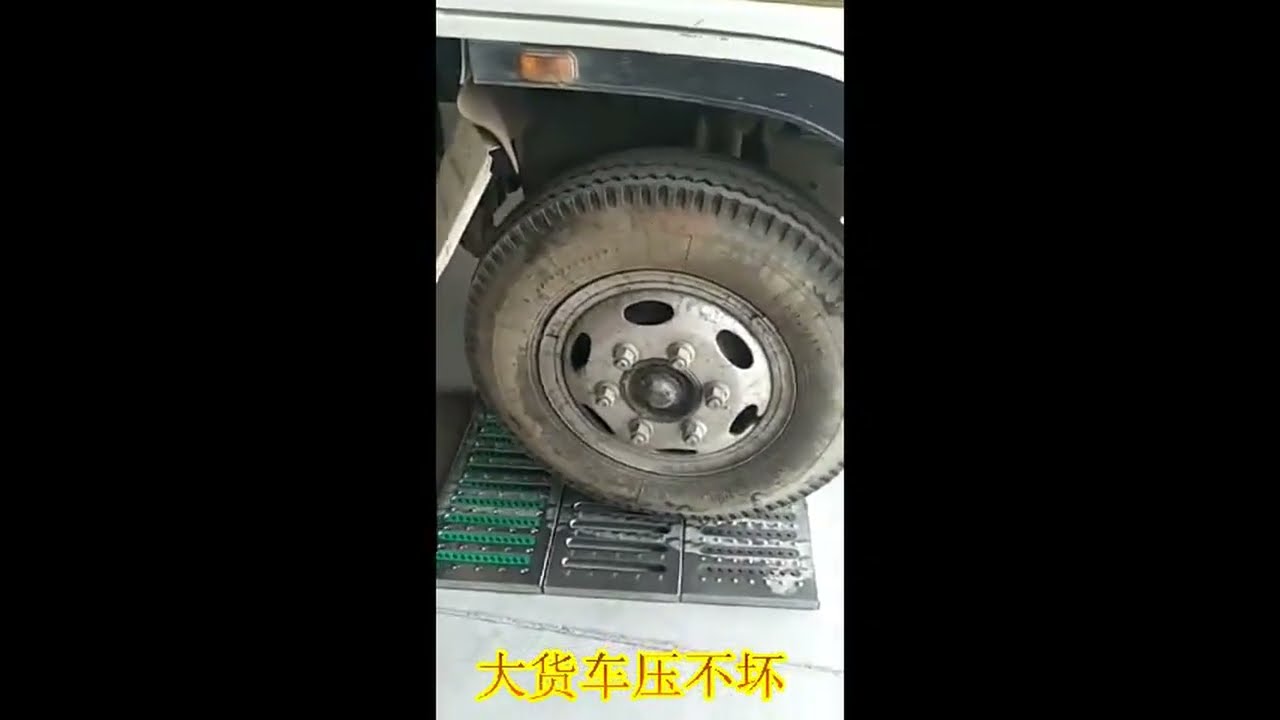

Watch Our Trench Drain Grates in Action
Product showcase, installation and factory production — see the build quality before you buy.
Why Buy Factory-Direct
Full Kitchen Utensils Co., Ltd. — Binzhou, Shandong, China.
One-Stop Manufacturing
Sheet-metal cutting, punching, welding and polishing done in-house — no middleman markups, faster lead time.
Custom Specs Welcome
Send drawings or samples. We open tooling and ship prototypes, then move to batch production.
Ship-Ready QC
Every unit is dimension-checked and surface-inspected before packing. Test reports on request.
10+ Years Exporting
Supplied commercial kitchen equipment to North America, Europe, Middle East and Southeast Asia.
Frequently Asked Questions
Quick answers for buyers and project managers.
What is a stainless steel trench drain grate?
It is a heavy-duty grate placed over floor drainage trenches in commercial kitchens to channel water, block debris, and reduce slip hazards.
Which material should I choose, 201 or 304 stainless steel?
201 stainless steel is cost-effective for standard kitchen use. 304 offers higher corrosion resistance for wet, chemical-heavy, or coastal environments.
What standard sizes are available?
Standard lengths are 580 mm with widths of 200, 250, 300, or 350 mm and a height of 25 mm.
Can I order custom sizes or shapes?

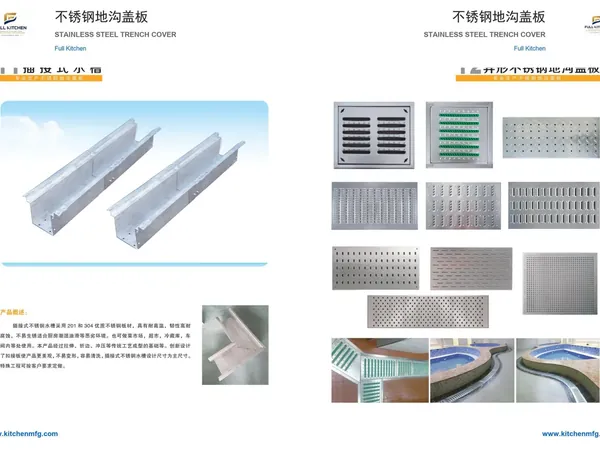

Yes. We produce custom lengths, widths, L-shaped corners, curved sections, and special hole patterns from your drawings.
What is the minimum order quantity?
Typical MOQ is 10-50 pieces depending on the pattern, but sample orders and smaller trials are accepted.
How long is the lead time?
Lead time ranges from 15 to 40 days based on quantity, material grade, and pattern complexity.
What warranty do you offer?
We provide a one-year warranty against manufacturing defects from the date of delivery.
How is the trench cover installed?
The cover rests on the trench edge or inside a matching frame. Installation is straightforward for flooring or kitchen contractors.
How do I clean and maintain the cover?
Lift the grate, remove debris, and rinse with water or degreaser. The smooth stainless steel surface makes daily cleaning quick.
Is CE certification available?
CE marking can be supplied for EU-bound orders — we provide the Declaration of Conformity and material test reports. For other destinations we support the compliance documents your market requires. Tell us your country and we confirm the exact certification needed.
What is the price of a trench drain grate?
Our trench drain grates start from $4 per piece for standard 580 mm models. Final price depends on size, material grade (201 or 304), pattern, and order quantity — contact us with your specs for a firm quote.
Need a Quote for Your Project?
Prices start from $4 / piece for standard models. Tell us your dimensions, material grade, and quantity — we reply within 12 hours.
